Our State-of-the-Art Equipment & Machinery

At Vision Electronics, we pride ourselves on utilizing cutting-edge equipment and machinery to ensure the highest quality and precision in our electronic assemblies. Our comprehensive range of advanced technologies enables us to deliver exceptional products tailored to our clients' needs.

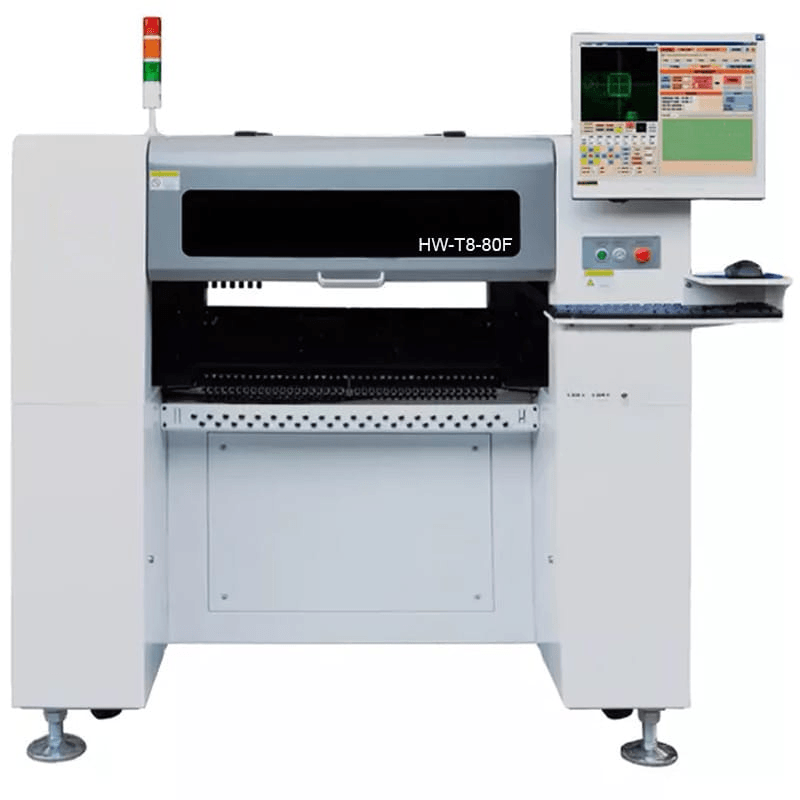

HW-T8-80F

HW-T8-80F is a high speed full automatic pick and place machine. Mounting speed 15000cph.Supported maximum area of PCB 500*350mm Up to 80 feeder slots. Use ball screw,AC servo motor control system imported from Panasonic. 8 Placement Heads can pick components at the same time. Time saving by the 8 nozzles are examined over the four cameras at the same time. Multi-Vision System: Total eight cameras.

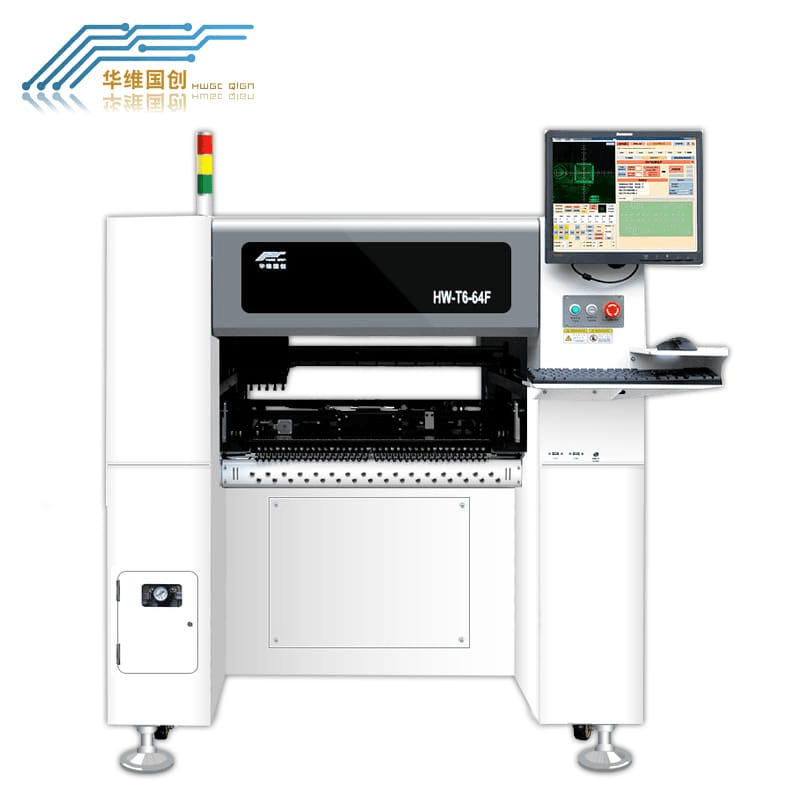

HW-T6-64F

HW-T6-64F is a high speed full automatic pick and place machine. Mounting speed 12000cph.Supported maximum area of PCB 500*370mm Up to 64 feeder slots. Use ball screw,AC servo motor control system imported from Panasonic. 6 Placement Heads can pick components at the same time. Time saving by the 6 nozzles are examined over the four cameras at the same time. Multi-Vision System: Total 6 cameras.

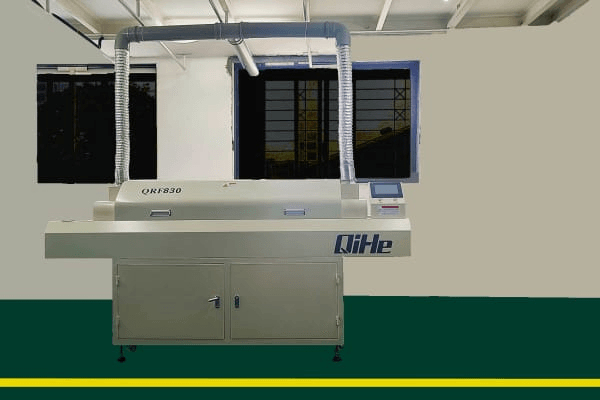

Reflow Soldering Machine

QiHe REFLOW 8 ZONE Desktop Benchtop Soldering SMT QRF630 Pick N Place Infrared Reflow Oven ; Heating up time, Around 20 mins ; Temperature control range, Room temperature~400℃. Having 8 heating zones and 2 cooling zones

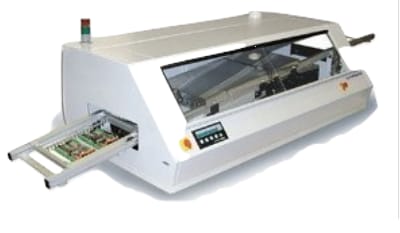

WSM 180 Wave Soldering Machines

12-kw-lead-free-wave-soldering-machine-500x500 Automatic wave solder system that provides the best value through cutting-edge technology. Ready-to-go fluxing, preheating and wave modules. Exceptional accuracy and repeatability Lead or Lead-Free solder compatibility.

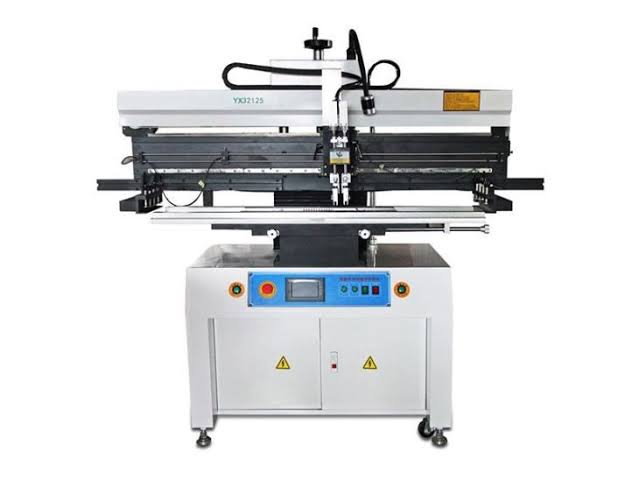

HWS550 SEMI AUTO STENCIL PRINTER

The HWS550 is a semi-automatic stencil printer designed for precision application of solder paste in PCB assembly. It offers high accuracy, ease of use, and efficiency for small to medium production runs.

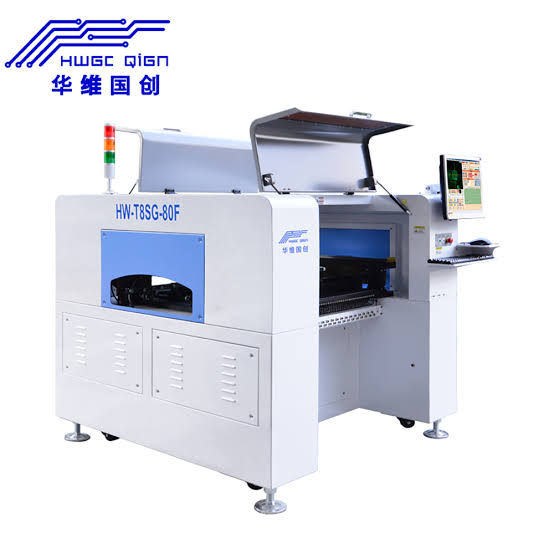

HE-T8SG-80F Pick and place machine

The HE-T8SG-80F is a high-speed pick and place machine for SMT assembly. It features 8 placement heads, up to 80 feeder slots, and can handle a wide range of component sizes for efficient and accurate board population.

WSM-180

The WSM-180 is a wave soldering machine designed for through-hole component soldering. It provides consistent and reliable soldering results for PCB assemblies, suitable for both lead and lead-free processes.

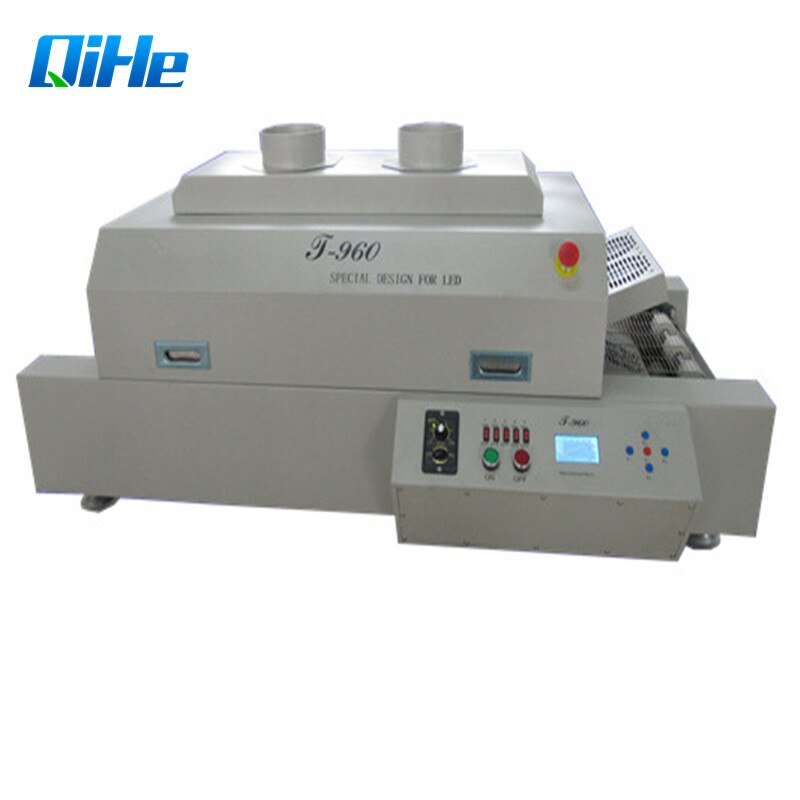

T-960 REFLOW OVEN

The T-960 is a compact reflow oven ideal for small to medium production volumes. It offers multiple heating zones for precise temperature control, ensuring optimal soldering profiles for various PCB assemblies.

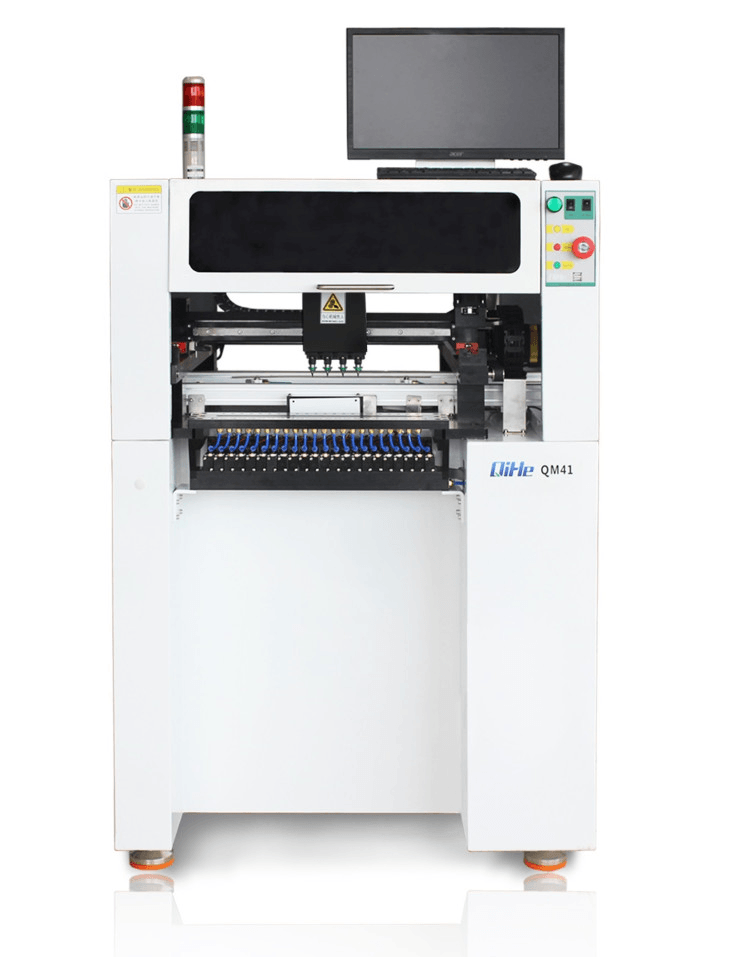

QM41B HIGH SPEED CHIP SHOOTER

The QM41B is a high-speed chip shooter designed for rapid placement of small components. It excels at placing passive components like resistors and capacitors, significantly increasing throughput in SMT assembly lines.

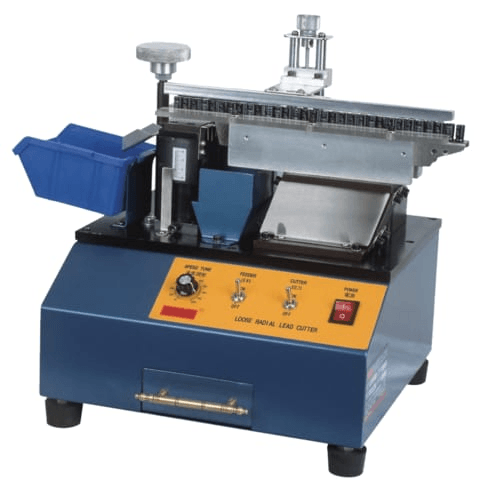

Radical Loose Lead Cutting Machine

The Radical Loose Lead Cutting Machine is designed for precise trimming of through-hole component leads after soldering. It ensures clean, consistent cuts, improving the quality and appearance of finished PCB assemblies.

✖
